Worktop Routing Template APS 900

Stock Code:
FE-204219
Price:
$901.60 inc GST
  • Auckland
    Usually ships in 3 days
  • Christchurch
    Usually ships in 3 days

Description

Description

Functions
Precise joining.

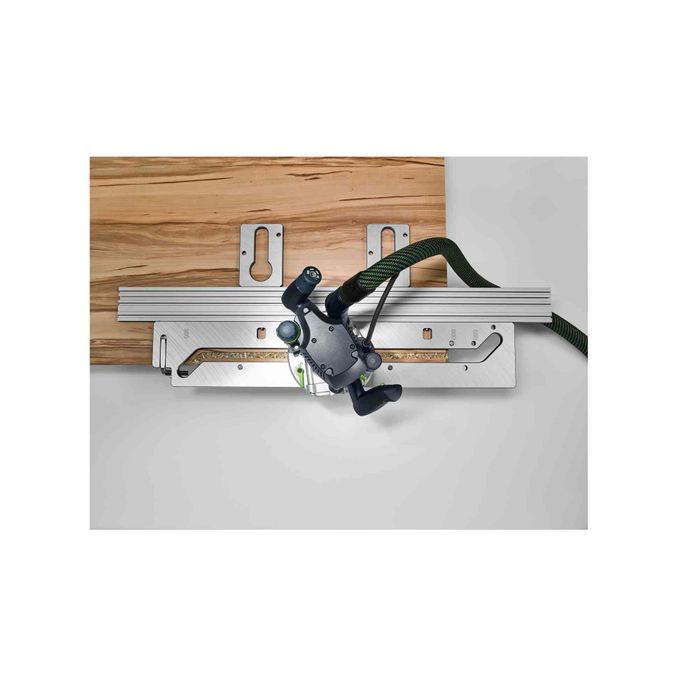

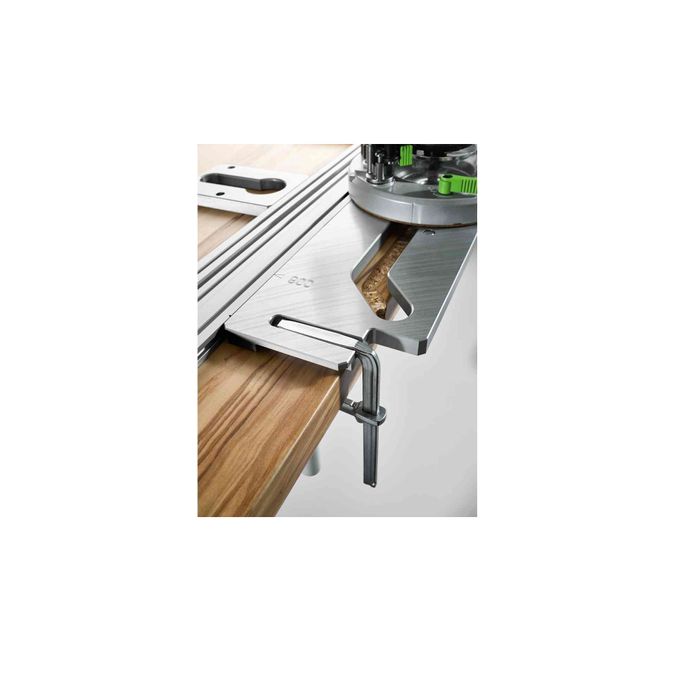

The APS worktop template makes flush connections of wooden panels at a 90° angle simple. The template is permanently fixed to the integrated clamp and thus enables precise results – even when the router passes several times along a single groove.

Robust routing template made from aluminium
For corner and panel joints with fixed fence with panel depths of 600 and 650 mm or, if moved, up to 900 mm
Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
Panel depths greater than 900 mm also possible using extension profiles
For groove cutters with 14 mm diameter and copying rings with 30 mm diameter, recommended for OF 2200/1400 router
for diameter of cutter 14 mm and copying ring 30 mm

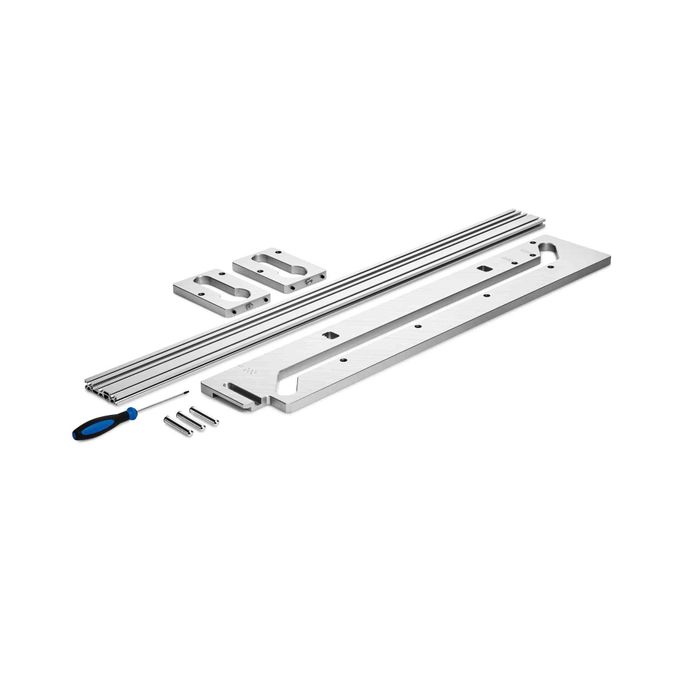

Items included
corner connection template
profile MFS-VP 1000
3x Bolt
Screwdriver

Dimensions (L x W x H) 1 000 x 380 x 16 mm
Panel depth with corner joints, without adjustment 600/650 mm
Panel depth with corner joints, with adjustment 900.00 mm
For worktop connectors, bolt length 65/150 mm
